CETOP3 G-Spool Subplate

Application

The Tucson G-Spool subplate is used in conjunction with G-Spool Solenoid Valves. With an internal connection between successive CETOP3 interfaces, there is only one inlet and outlet to the entire system. It allows only one stack of the modular circuit to be used at one time.

Specifications

Fluid Power Symbol

P, T Port Size	1/2” BSP
A, B Port Size	3/8” BSP
Body Material	SG Iron
Interface	CETOP3
Weight	8.3 kgs

For more information:

Tucson Hydrocontrols - Modular Valves

Tucson Hydrocontrols - Information

Accumulator Safety Blocks

The Tucson safety block is used to shut off and discharge/drain hydraulic accumulators. Safety blocks are attached along with accumulators to enable ease of servicing as well as to maintain safety standards. This is especially required in the case of accumulators exposed to radiating heat as in the case of steel mills where there is a chance of the accumulator gases expanding and causing a pressure spike within the accumulator.

Operation

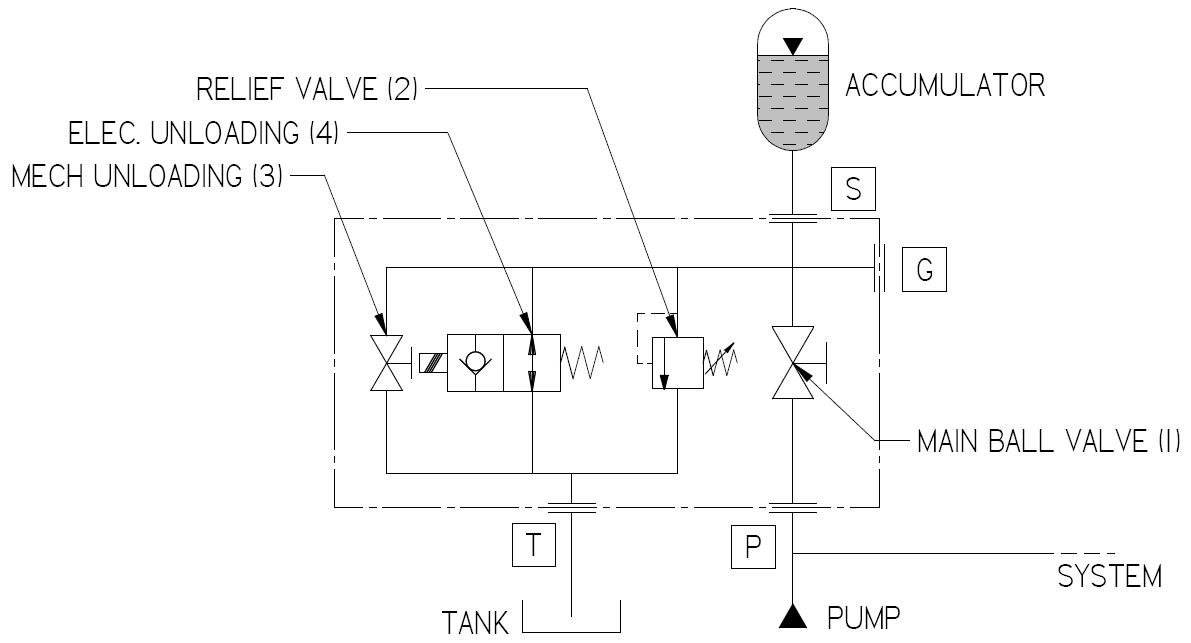

The Ball Valve (1) seals off the accumulator from the system during servicing/draining. The Shut Off Valve (3) or the Solenoid Valve (4) can then be used to unload the accumulator to tank. The Relief Valve (2) prevents the accumulator from exploding in case of a pressure spike since it is disconnected from the main system relief.

Specifications

Max Bore Size	32mm
Max Pressure	500 bar
Body Material	Steel
Ball Material	Stainless Steel
Mounting	Line
Weight	13.2 Kg
Leakage	Less than 1 millilitre/min (15 dpm)
